Description

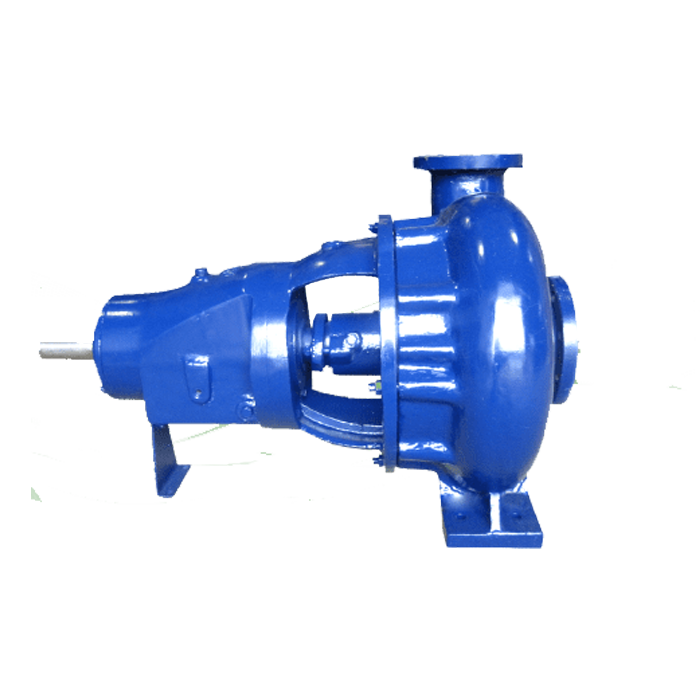

Non-clog pumps have a limited solids handling capacity. The fully-free vortex design enhances the non-clogging operation. It is suitable for liquids having big particles of sludge.

Operating Range

  • Delivery Size: DN 32 to 150 mm
  • Capacity: Up to 350m³ /hr
  • Head: Up to 50 m
  • Temperature: Up to 120° C
  • Pressure: Up to 12 bar

Design Features

  • Non-clogging operation, fully free Vortex design
  • Any solid that can enter the pump will pass through the discharge
  • Minimum particle degradation, sudden changes in direction & turbulence have been eliminated
  • Fluid does not pass through the impeller; particle leaves in single rotation
